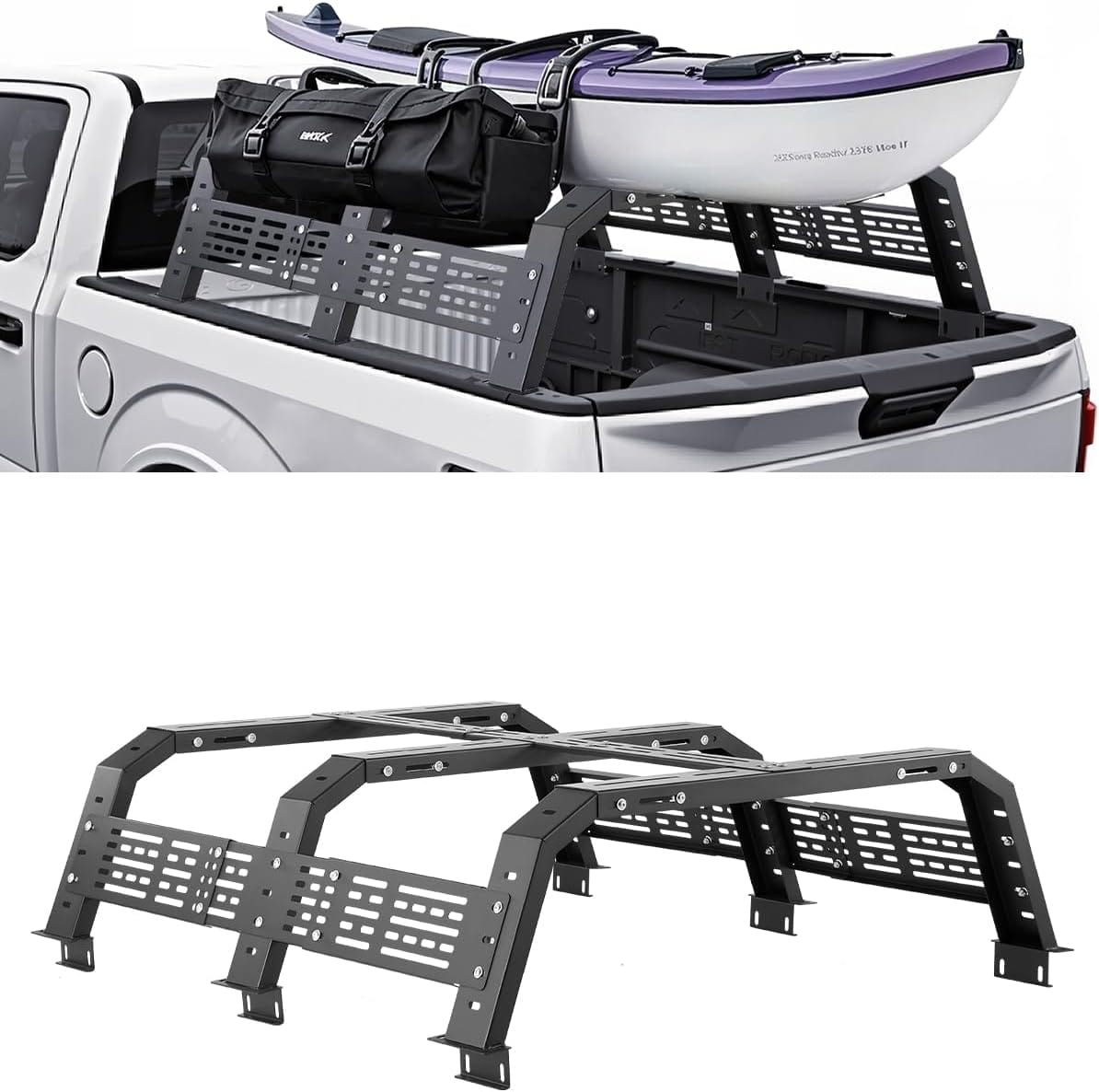

Best Overland Bed Racks for Gear Hauling

Affiliate disclosure: as an affiliate partner, RigTested may earn from qualifying purchases through links on this page, at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.

Why you should care about a bed rack

An empty truck bed rolls everything on two hills. A bed liner tames that a little. A bed rack solves a different problem: it lifts your gear above bed level, opens up the full floor for things that need to stay flat, and gives you a hard surface to strap, hang, or stack on. On a full overland load that changes what the truck can do.

The one spec that matters more than price is how tall the rack sits above the rails. A low platform is fine for tying down coolers and jerry cans. If you run a bed-mounted tent, awning, or a high box you need clearance underneath it, and the rack height is what decides whether the tent's footprints clear the deck. Measure the gap before you buy, not after.

Quick picks

All four carry a 900 lb static rating and use adjustable clamping bases that bolt or clamp to the factory bed rails. The real differences are width range, which trucks they claim to fit, and how much vertical space you get under the deck.

VEVOR 49.2–67.9 in, the value mid-size pick

This is the one we would point someone at for a Tacoma or a Gladiator if the goal is gear storage without the full-size price. The 49.2 to 67.9 inch adjustable span covers both of those beds, and the sidebar keeps cargo from shifting sideways on a washboard. At $269.91 it undercuts the other two VEVOR widths by a meaningful amount while keeping the same 900 lb static capacity and heavy duty steel.

The trade-off is the width range itself. If your bed is on the wider end of mid-size, you are closer to the top of this rack's span, and the clamps sit further out where there is less rail to bite. On a Tacoma or Gladiator it is a comfortable fit. On a full-size, buy the next one up.

A concrete thing to check at install: on the Tacoma the wheel arches push in on the outer clamp positions, so plan to set the width where the inner rail has the most straight length to clamp onto, not just the widest setting that “fits.” It looks wrong, but it is the one that stays clamped when you hit a big dip.

VEVOR 51.2–65.4 in, the Ranger and Colorado fit

Same platform, narrower band, and it is the one aimed at the Ranger, Colorado, Tacoma, and Gladiator JT. If you run a mid-size that is not on the wider end, this is the cleanest fit because the span is tighter and the load is spread over less adjuster travel.

For the Colorado specifically this is a good default. The bed is short and the width falls inside the 51.2 to 65.4 inch window, so the rack spans the rails without hanging over the edges. That matters for payload, because every inch of overhang is weight you carry on a moment arm the truck has to fight.

One real-world quirk: with the deck sitting at rack height, the top of the bed is now at about waist level. Reach for the far corners the first few times and you will notice the tailgate is closed under the deck. You either reach over the side or set one end up on a step. It is a five-second fix once you learn the pattern.

VEVOR 54.3–68.3 in, the full-size option with sidebar

If you run a one-ton or a wide two-ton, this is the one to grab. The 54.3 to 68.3 inch span is the widest of the three VEVOR widths, and it lists both full size and mid-size compatibility. The sidebar is the same as the others, which is the feature that keeps a loaded bed from becoming a lottery on a grade where the truck rolls a couple of degrees.

The price is the highest of the VEVOR line, but the difference from the mid-size is less than you would expect for the extra reach. If you might move to a bigger truck in a few years, this is the one that keeps options open rather than a rack you outgrow.

On a full-size the payload math gets more generous, which is the whole point of the higher deck. You can load the bed floor to the rails with things that need to stay flat, and carry the bulky soft stuff on top. If you are also carrying a full water setup, our water storage guide has the tank sizes that actually fit without eating the whole deck.

JOYTUTUS 14.96″ high, the tall clear option

JOYTUTUS is the only one here that publishes its deck height as a headline number: 14.96 inches. If your whole plan is built around a bed-mounted tent that needs a clear underside, this is the one that gives you the most room under the deck to work with. It also comes with a MOLLE panel, which is the piece you want if you are hanging gear by the webbing instead of strapping it down.

The catch is fit. It is listed for the 2020 to 2026 Gladiator JT and the 2015 to 2026 Colorado. It is not a universal adjustable like the VEVOR line; it is a model-specific rack, and that is both why it can claim exact clearance and why you have to make sure you have one of those two trucks before you buy it.

The MOLLE panel is the real reason to consider it over the VEVOR. On a VEVOR you are strapping a bag of gear to the top bar. On the JOYTUTUS you can loop soft bags, a shovel, a trash bin, or an empty cooler through the webbing and it stays put on its own. For a crew that adds and drops gear at every camp, that is genuinely nicer to live with.

If the rack is going to carry shade, our vehicle awning guide covers mounting styles and load ratings.

Buy it right

Measure the inside rail width at the cab and again at the rear of the bed, and buy for the wider measurement. Wheel arches intrude, so the usable span is usually a couple of inches less than the widest the clamps allow. Every rack here lists a range, and the right one is the range that has room on both ends, not one that just touches the limits.

Read the 900 lb rating as static, not as what you want bouncing over washboard. It will hold that number parked, but the load you actually take moving should be well under it, especially with soft cargo that shifts. Stack the heavy, dense stuff low and close to center.

If the deck height is your reason for buying, check it against the thing that goes under it, not against marketing. A tent's footprint and frame need real inches, and the JOYTUTUS publishes its number while the VEVOR line does not always make it easy to find. If you are running a bed tent either way, our bed tent guide covers the clearance numbers for the tents we actually tested. And if you are doing the full gear reorganization the rack makes possible, the bed storage guide works well as the next step, since the rack handles the bulky top load and the storage systems handle what stays in the bed.

Get the right rack for less

Rack prices shift a lot between restocks, and we track them. Check current deals on overland bed racks before you commit to full price, particularly on the full-size width where the delta between a sale and list is the biggest.
