The jack in your truck's tool box was designed to swap a flat on a level parking lot. It works fine for that. The moment you actually need to lift the rig on the trail, it stops being enough. A wheel buried in a rut, a cracked rim you want changed at the scene, a stuck rear axle you are trying to rock free, a leaf spring that needs a look while you are three hours from a shop. All of those jobs call for a jack that can reach, hold, and take a loaded vehicle off the ground without sinking into the dirt itself.
Here is what we recommend, by situation. Four jacks, all currently in stock, each good at a different thing.
Quick picks
| Jack | Type | Capacity | Best for | Price |
|---|---|---|---|---|
| Cat Wheelie Off-Road Trolley | Wheeled trolley | 4,400 lbs (2 t) | Soft ground and daily trail use | $152.99 |
| 60-inch High Lift | High lift | 7,000 lbs (3 t) | Maximum lift height and clearing stuck wheels | $75.99 |
| SUNEX 2 Ton Big Wheel | Wheeled trolley | 4,400 lbs (2 t) | Built to last a decade of abuse | $395.99 |
| Powerbuilt 3 Ton Unijack | Bottle with built-in stand | 6,000 lbs (3 t) | Solid surface, stable lift, cheap and sturdy | $95.98 |
What actually matters in a trail jack
Capacity first. A 2-ton (4,400 lb) jack clears most trucks and SUVs at one corner, but payload changes the math fast. A loaded Raptor can put well over 6,000 lbs on a rear hub. If you haul serious weight, size up or use the jack at the lightest axle. The two 3-ton options below exist for exactly that reason.
Lift range next. Measure from the ground to the factory jacking point on your frame, then add what your tire diameter is and what you still need of clearance. Run 33-inch tires and a 24-inch max lift is fine. Run 37s or 40s and the number jumps fast. This is the most common thing people get wrong, and they find out at the end of a long trip when the jack tops out two inches short.
Ground contact is the third and the one everyone skips. A jack that works on dirt and rocks at a dealer lot will dig a hole in sand or sink into mud the moment you lean on it. Wide bases and large low-pressure wheels solve this. A bottle jack's flat foot is fine on gravel and pavement, useless in anything loose.
Finally, safety. A jack gets the vehicle off the ground. A jack stand keeps it there. There is no such thing as a "just for a second" where you should put your body under a load held by hydraulics, especially with a high lift doing the holding. Buy stands, carry them, use them. Every section below assumes one.
Cat Wheelie Off-Road Trolley Jack, 2 Ton
This is our top pick. It rolls out on large balloon wheels instead of a flat skid, which is the whole point. In a rut, a stock jack or a bottle jack sinks as soon as it takes load. The Wheelie's wide, low-pressure tires spread the weight and stay on the surface. That design is built for soft washes and deep ruts where a flat-footed jack is hopeless.
It is a proper trolley design, so it handles the approach smoothly and the pump takes even load across the frame. The 2-ton rating covers a light truck or an SUV at one corner with room to spare, and for loaded work we pair it with the high lift at the heavy axle. It carries a hard shell case that actually lets you carry it by the handle, and it is light enough that one person does the whole job. That is the real value. Most of the time you are out there alone.
The one thing to know: the 2-ton cap means it is a front-corner and light-axle tool for a heavy rig. It is not the one that lifts a fully loaded rear end. Buy it for the 80% of jobs and keep a higher-capacity option for the rest.
60-inch High Lift Jack, 3 Ton / 7,000 lbs
The high lift is the off-road classic, and it earns its place on one thing: lift height. This one runs a 5.12 to 51.97 inch range, which is almost absurd. The saddle rides the frame track and climbs as the ram extends, so it clears big tires that make every other jack top out. If you run 37s or bigger, or you need to free a buried wheel by getting the axle way up, this is the tool that does it. At 7,000 lbs it also has the capacity to pull a loaded corner off the ground.
It is the least refined of the four and you should know that before you rely on it. The saddle is a cutting edge by design. When you set it on the frame, you want a high-lift saddle pad or a piece of flat material between the saddle and the steel, or it will dig a groove and give you a weak contact in exactly the spot you do not want it. The wheels are thin, so on soft ground it wants a board or a rock under the contact point. And the pump is manual and takes a few more pulls than a hydraulic trolley.
It is still worth a spot in the bed. It is cheap, it is the only thing that gets a buried wheel high enough to free itself, and it doubles as a pry bar. When the wheel is buried in soft terrain, the pair of recovery boards for getting unstuck goes under the drive tires first, and the high lift does the rest of the work.
SUNEX Tools 2 Ton Big Wheel Jack, 6602RJ
Here is the one you buy when you want the problem solved for a decade. The SUNEX big wheel trolley is a heavier, more machined build than the Cat. The wheels are large and the frame is thick steel, so it takes the kind of abuse a trail jack actually gets: being dragged over rocks, being loaded and unloaded a hundred times, getting set down hard on uneven ground. It feels like the kind of tool that will outlive the truck.
The 2-ton rating puts it in the same class as the Cat for what it can lift at a corner, and it shares the trolley advantage of rolling up to your jacking point on soft ground without sinking. Where it separates is build quality and the fit and finish. No creak, no play in the pump, a solid lock. It is priced like it will be in your garage in ten years, and if that is your standard, it is the right buy.
For most rigs it is the overkill option. If you want one wheeled jack and you want it to be the last one you ever buy, this is it. If you want the same job done for half the money, the Cat does it well enough.

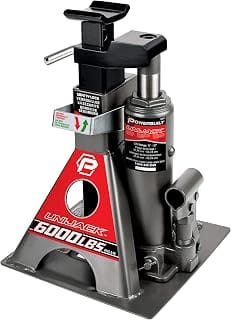

Powerbuilt 3 Ton Bottle Jack with Built-in Stand
The Powerbuilt unijack, $95.98
This is the odd one out, and it is the one for a specific job. It is a bottle jack with the stand welded into the wide base, so you get a rock-stable platform that will not roll, tip, or sink on a solid surface. The base is genuinely wide, which is why it is the most stable of the four when the ground is hard and flat. On a gravel campsite or a rocky pullout, it plants and holds without the wobble you get from a narrow bottle foot.
The 6,000 lb (3-ton) capacity is the real reason to have it. It is the cheapest option here that can genuinely lift a loaded corner, and it does it on a platform that will not move. That makes it the one we trust for the jobs where the stability matters most, like a wheel change at the trailhead or getting a rig level while you work underneath on stands. The wide base also means you can put a little weight on it and it stays put, which a normal bottle jack refuses to do.
The limit is ground. It needs solid, level surface. It is not the jack you roll out into sand, and its lift range is shorter than the high lifts. Think of it as your solid-surface workhorse: cheap, stable, high capacity, and useless in the soft stuff. For that reason it pairs naturally with a trolley or a high lift, not as a replacement for one.
The one rule that matters more than the jack
A jack is a lifting tool, not a support tool. Every one of these gets the vehicle up, and then it is your job to put it on something that cannot fail. Jack stands go under the frame at the manufacturer points, the tire is supported or chocked, and only then does any person go near the load. We have seen people skip the stands because the hydraulic seemed fine. That is the moment things go wrong, and a hydraulic seal is the worst thing to stand on.
High lifts deserve extra caution because the saddle contact is the weak link. A groove dug into the frame reduces the contact area, and if the jack slides along the track under load you have a very fast, very heavy failure. The saddle pad is not optional, and the load should be on the strongest part of the frame rail, not the edge.
If the wheel is in a position where you need to pull the rig free before or after the lift, that is a job for the right off-road recovery kit with the proper straps and shackles rated for the pull, not the jack. A jack lifts. A strap pulls. Keep those two jobs separate and you avoid most of the disasters people post about.
If the reason you are lifting is a puncture, our tire repair kit guide covers the plugs and sealants for fixing it on the spot.
Which one to buy
Most people want one good trail jack and should start with the Cat Wheelie. It does the common jobs on soft ground, one person can carry and run it, and the price is reasonable for the class. If you run big tires and need the reach, or you want the cheapest tool that can free a buried wheel, add the high lift. If you want the solid-surface, high-capacity workhorse for trailhead and campsite work, the Powerbuilt unijack rounds out the set for less than a dinner for two.
And if you are out there after dark doing any of this, the light matters as much as the tool. A solid LED light bar for overland rigs turns a fumbling night lift into a five-minute job, and it is worth its weight the first time you need it in the dark.
Deals on the exact jacks in this guide, and on the rest of the overland kit, are tracked at the RigTested deals page. Prices move, so check there before you order. The four links above take you to the current list price on each one today.
